Caratteristiche

Specificazioni

Condition: New

Applicable Industries: Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Construction worksÂ , Energy & Mining, Other

Max Working Pressure(MPa): 0.8 MPa

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: New Product 2022

Warranty of core components: 1 Year

Core Components: Pressure vessel, Gear

Capacity: 20-20000L, 20-20000L

Dimension(L*W*H): 2450x2450x7130mm

Weight: 8850

Warranty: 1 Year

Key Selling Points: Easy to Operate

Showroom Location: India, Bangladesh, Uzbekistan

Product name: Cryogenic Storage Tank

Material: S304

Keywords: Cryogenic Storage Tank

Function: Low temperature storage

Color: White

Shape: Cylindrical

Application: Chemcial Storage

Name: Cryogenic Storage Tank

Usage: Store Liquid

Informazioni di base

Termini di pagamento e spedizione

Packaging Details: 1. Unit NZO series will packed with wooden case, anti-collision foam block, machine be packed by Stretch film, pearl cotton, according to the export packing standard. 2. Two sets machine delivery by unit 20 feet or 40 feet container, the booster will pack

Supply Ability: 100 Set/Sets per Month

Descrizione di prodotto

Product parameters

Product Name	Cryogenic Storage Tank
Model No.	NZT
Production	20L-20000L
Material	S304
Pressure	0~0.8Mpa
Set tempreture	-196℃

The principle of liquefaction storage

Liquefaction refers to the process of a substance changing from a gaseous state to a liquid state, which releases heat to the outside world. There are two ways to achieve liquefaction, one is to reduce the temperature, and the other is to compress the volume. Since the volume of the gas usually becomes one thousandth of the original volume after liquefaction, which is convenient for storage and transportation, some gases are usually liquefied in reality. Under pressure, it can become liquid, while the critical point of other gases (such as oxygen and nitrogen) is very low, and deep cooling must be carried out while pressurizing. The way gas is liquefied: Method 1: reduce the temperature (such as oxygen, nitrogen, argon); Method 2: Compress the volume (such as ammonia, petroleum gas), Note: If the temperature is higher than its critical temperature, it cannot be compressed to liquefy it; Method 3: At a certain temperature, compress the volume of gas to liquefy certain gases (such as carbon dioxide);

Relevant parameters and main structure of stationary vacuum insulated cryogenic pressure vessel

Relevant design, manufacture and inspection standards: TSG R0004-2009 "Stationary Pressure Vessel Safety Technical Supervision Regulations" GB150-2011 "Pressure Vessel" GB/T18442-2011 "Fixed Vacuum Insulation Cryogenic Pressure Vessel"

Common media properties

Media Name	Standard boiling point (℃)	Liquid density (Kg/m3)	Gas density (Kg/m3)	Liquid to Gas Volume Ratio
Natural gas (methane)	-161.52	420～460	0.68～0.75	1:600
Oxygen	-183	1140	1.429	1:800
Nitrogen	-195.6	810	1.25	1:640
Argon	-185.7	1410	1.784	1:780
Carbon dioxide	-78.46	1115（-40℃）	1.976	1:560

Note: 1) Standard melting point of carbon dioxide: -56.6℃; 2) The boiling point and gas density are all in the standard state.

Definition

1) Tank body: a pressure vessel consisting of an inner container, an outer shell and a thermal insulation layer. 2), the inner container (the material is generally stainless steel): the inner tank that stores cryogenic liquid and can withstand working pressure. Generally include: cylinder, head, craft manhole, external pressure reinforcement ring, etc. 3) Shell (generally made of carbon steel or low alloy steel): an airtight container that forms and protects the vacuum insulation space. Generally, it includes: cylinder body, head, external pressure reinforcement ring, lead pipe through-wall joint, lifting lug, support, etc. 4) Interlayer: refers to the closed space formed between the inner container and the outer shell. Generally, it includes: thermal insulation material (vacuum powder-pearl sand), inner container and outer shell connecting support member, and evacuated flow pipe. 5) The pipeline system generally includes: safety discharge and vent pipe, differential pressure liquid level gauge lead pipe, full liquid indicator pipe (overflow pipe), liquid inlet pipe, supercharger liquid inlet, air outlet pipe, pumping pipe. vacuum tube, etc. 6) Valves, accessories, instruments: Control valves that control the opening and closing of each pipeline; Vacuum sealing valve - maintain interlayer vacuum after evacuation; Vacuum detection valve - the interlayer vacuum begins to drop after evacuation, and the actual vacuum degree during use must be grasped after being put into use; Instrument control valve; Safety relief device switching or three-way valve - double safety relief devices are required as follows; Inner container safety valve (generally four pieces, two pieces are "on duty" online, and the other piece is on duty or off duty for school inspection); Inner container rupture disk device; Explosion-proof device for the outer casing - in case the liquid in the inner container leaks into the interlayer, the outer casing needs to be prevented from bursting due to overpressure; pressure gauge; liquid level gauge; vacuum detection gauge; Flame arrester (for general flammable media) - when discharging flammable media (including active discharge and overpressure relief), it should be discharged through the flame arrester to prevent backfire; Electrostatic grounding terminal (set for general flammable media), etc.

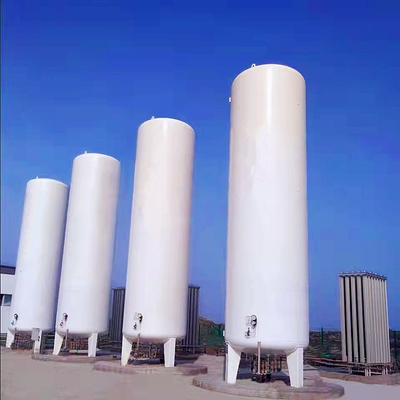

Products real shot

Shipping pictures

Contact :Anna

Mail：anna.chou@hznuzhuo.com

Tel/WhatsApp/Wechat：0086-18758589723

Q1: Are you a trading company or manufacturer? A: We are a manufacturer. Q2: What is your term of payment? A: T/T 30% in advance and T/T 70% balance paid before shipment. Q3 How long is your delivery time? A: About 30 days. Q4: What is your product quality assurance policy? A: We offer a warranty period of 1 year or 1000 running hours whichever comes first. Q5: Do you offer OEM/ODM service? A: Yes. Q6: Do you have ATS system? A: Yes, it is optional.
