Caratteristiche

Specificazioni

Condition: New

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2021

Warranty of core components: 1 Year

Core Components: Pressure vessel, Other

Dimension(L*W*H): 21400*2160*3360mm

Capacity: 5000L

Weight: 2786

Volume (mÂ³): 5

Inner Material: SUS30408 Guobiao/T24511

Outer Material: Q345R Guobiao/T713

Design Pressure(MPa): 1.6Mpa

Max Working Pressure(MPa): 1.6Mpa

Design Standard: TSG21,Guobiao/T150,Guobiao/T18442-2019

Working Temperature(â„ƒ): -196 - 50 â„ƒ

Warranty: 1 Year

Key Selling Points: Long Service Life

Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction worksÂ , Energy & Mining, Advertising Company, Other

Showroom Location: None

Diameter: 1750mm(inner)/2150mm(outer)

Application Medium: LO2\LAr\LN2

Design: Vertical

Maximum filling rate: 95%

Chassis size(L*W): 2000*2000mm

Supercharger: 25NmÂ³/h

Vaporizer: 105NmÂ³/h

Informazioni di base

Termini di pagamento e spedizione

Packaging Details: Selling Units:Single item Single package size: 2140*2260*3360mm Single gross weight:2786kg Package Type:PP bag+nylon net+ Foam+wood pallet

Supply Ability: 100 Piece/Pieces per Month

Descrizione di prodotto

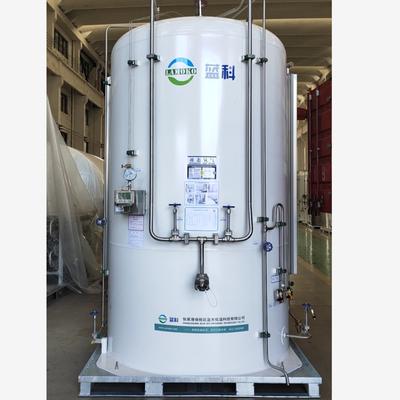

Liquid oxygen storage tank, liquid argon storage tank and liquid nitrogen storage tank
Insulation method: high vacuum winding insulation design
Filling medium: L02, LN2, lar
Volume specification: MT3000, MT5000 MT7500
Pressure rating: 1.6Mpa, 2.3mpa, 3.3Mpa
Technical features:
(1) The tank body adopts high vacuum winding insulation design and assisted by special high vacuum maintenance technology, with good insulation effect and less Ig evaporation;
(2) The tank body is designed with large diameter and low vertical transportation height to ensure product performance and save transportation cost;
(3) Compact structure, small floor area, fast and convenient installation, which can be easily installed and used on the same day of arrival;
(4) Compared with the traditional gas supply mode of storage tank + vaporization pressure regulating skid, the cost is better;
(5)flowmeter and remote monitoring can be installed to realize digital and information management.

1	Model No.			MT3000-A	MT5000-A	MT7500
2	Type			Vertical & flat bottom	Vertical & flat bottom	Vertical & flat bottom
3	Design code			TSG 21, Guobiao/T150, Guobiao/T18442-2019
4	Design pressure (Inner vessel/outer shell)			3000MP 1.6MPa/-0.1MPa	5000MP 1.6MPa/-0.1MPa	7500MP 1.65MPa/-0.1MPa
						3000High 2.3MPa/-0.1MPa	5000High 2.3MPa/-0.1MPa	7500High 2.4MPa/-0.1MPa
						3000VHigh 3.3MPa/-0.1MPa	5000VHigh 3.3MPa/-0.1MPa	7500VHigh 3.5MPa/-0.1MPa
5	Max. Working pressure (Inner vessel/outer shell)			3000MP 1.6MPa/-0.1MPa	5000MP 1.6MPa/-0.1MPa	7500MP 1.6MPa/-0.1MPa
						3000High 2.3MPa/-0.1MPa	5000High 2.3MPa/-0.1MPa	7500High 2.3MPa/-0.1MPa
						3000VHigh 3.3MPa/-0.1MPa	5000VHigh 3.3MPa/-0.1MPa	7500VHigh 3.3MPa/-0.1MPa
6	Design temperature (Inner vessel/outer shell)			-196 ℃/ 50℃
7	Full Volume			3m3	4.99m3	7.5m3
8	Filling rate			95%
9	Main body material	Inner vessel/ sealing head	S30408 Guobiao/T24511
10	Main body material		Outer shell/ sealing head	Q345R Guobiao/T713
11	Diameter (mm)	Inner vessel	1300mm	1550mm	2050mm
12	Diameter (mm)		Outer shell	1500mm	1750mm	2250mm
13	Filling medium			MP type and High pressure type can be filled with liquid nitrogen, liquid oxygen and liquid argon; (V-High pressure type can only be filled with liquid nitrogen)
14	Insulation			High vacuum multilayer insulation
15	Helium leak test			Yes
16	Vacuum interlayer leakage and outgassing rate			≤1x10-6 Pa.m3/s
17	Static evaporation rate (liquid nitrogen)			≤0.66%/d	≤0.45%/d	≤0.4%/d
18	Packing pressure of inner vessel when leaving factory			20KPa
19	Factory vacuum			≤0.001Pa
20	Paint brand paint film thickness			佐敦JOTUN 200um
21	Support form			Hanging
22	Dimensions (LWH) mm			210521103090mm	2140x2260x3360mm	2800x2780x3300mm
23	Chassis size (L*W) mm			1800*1800mm	2000*2000mm	2450*2450mm
24	The height of the liquid inlet (filling port) from the ground			1070	1170	1170
25	Empty weight (including chassis bracket)			3000MP： 1890 kg 3000HP： 2058 kg 3000VHP： 2346 kg	5000MP： 2786 kg 5000HP： 3100 kg 5000VHP： 3560 kg	7500MP： 3390 kg 7500HP： 3910 kg 7500VHP： 4575 kg
26	Internal piping material			Stainless steel S30408 Guobiao/T14976
27	External piping material			Stainless steel S30408 Guobiao/T14976
28	Logo			According to customer’s requirement
29	Pressure booster			25Nm3/h	25Nm3/h	45Nm3/h
30	Vaporizer			75Nm3/h	105Nm3/h	150Nm3/h

Zhangjiagang Blue Sky Cryogenic Technology Co., Ltd. is located in Zhangjiagang City, Jiangsu Province, a civilized and sanitary city. It is committed to a complete set of solutions for cryogenic equipment and its technical application. We have a professional development team and installation service team. Staff composition. The key members concurrently serve as the National Gas Cylinder Standardization Committee, the Cryogenic Subcommittee of the Cylinder Standardization Committee, the China Road Transport Association and other industry experts, and participate in the drafting of national standards for related products.

The company is mainly engaged in LNG/IG cryogenic storage tanks, LNG/IG cryogenic gas cylinders, LNG vehicle cylinders and other products; LNG/IG vaporizers, LNG/IG pressure regulating metering skids, IG gas mixers and other complete sets of gas supply devices; LNG/ IG engineering complete set of supply, installation, after-sales maintenance and other services.

We uphold the values of "honesty-based, trust-based", deep cultivating technology in the low temperature field, focusing on gas equipment applications, diligent in learning, and continuous improvement; in order to provide customers with thoughtful one-stop service, at the same time, the company and the industry chain Relevant well-known key enterprises have established long-term and stable deep strategic partnerships, exchange what is needed, work together, and jointly contribute to our "blue sky and green land".

Q1: Are you a manufacturer or a trading company?
A1: We are a factory direct selling trading company, and have got the permit of export for years as well.

Q2: Can I print our own logo on package?
A2: Sure! Customized package and OEM printing are available.

Q3: What's the payment terms?
A3: Payment<=10,000USD, 100% in advance. Payment>10,000USD, 50% T/T in advance ,balance before delivery.

Q4: What's your delivery time?
A4: Usually 15-25 days, depending on the quantity you ordered.
