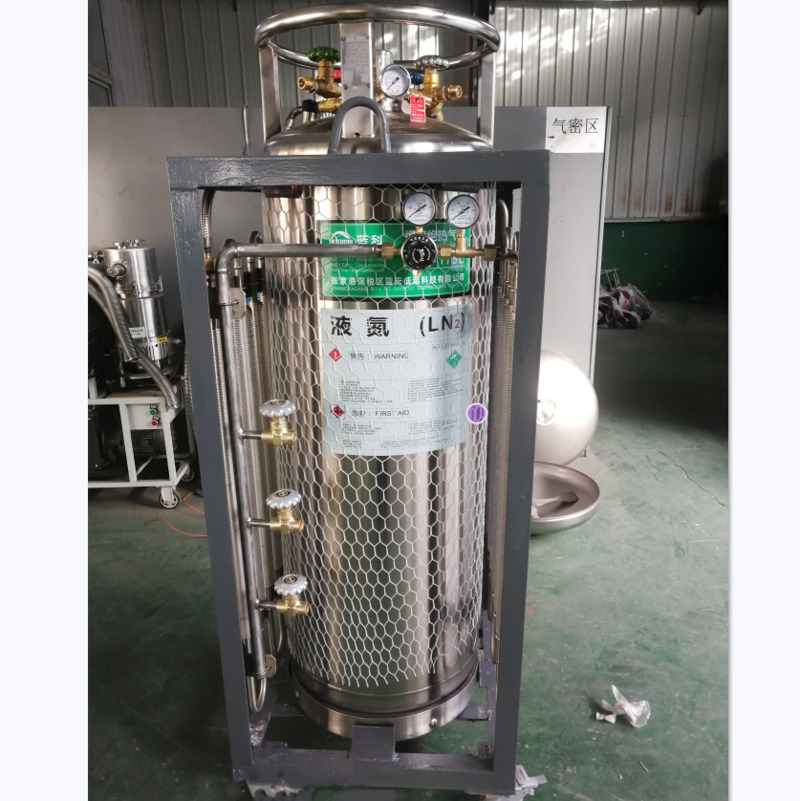

Cryogenic LNG Gas Cylinder Tank Dewar for Liquid Oxygen Nitrogen Argon CO2

1 piece
MOQ
$1,250.00(>=1 pieces)
prezzo
Cryogenic LNG Gas Cylinder Tank Dewar for Liquid Oxygen Nitrogen Argon CO2
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Condition: New
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2022
Warranty of core components: 3 years
Core Components: Pressure vessel, Other
Dimension(L*W*H): 1100*860*1865mm
Capacity: 410L
Weight: 354
Volume (m³): 0.4
Inner Material: SUS304
Outer Material: SUS304
Design Pressure(MPa): 1.6Mpa
Max Working Pressure(MPa): 1.6Mpa
Working Temperature(℃): -196 - 50 ℃
Warranty: 1 Year
Key Selling Points: Long Service Life
Applicable Industries: Manufacturing Plant, Energy & Mining, Other
Showroom Location: None
Design:: Vertical
Static evaporation rate(%/d): ≤2.1%/d
Color: Silver
Material: SUS304
Application Medium: LNG
Informazioni di base
Termini di pagamento e spedizione
Packaging Details: Selling Units:Single item Single package size: 1100*860*1865mm Single gross weight:354.00 kg Package Type:PP bag+nylon net+ Foam+wood pallet
Supply Ability: 100 Piece/Pieces per Month
Descrizione di prodotto
The DPL series containers are high performance vacuum insulated, it is designed to store and transport cryogenic liquid oxygen, nitrogen or argon. Containers can be used for over road transportation of cryogenic fluids, as well as on-site storage and supply in a wide range of applications in a long holding time, with self-Pressure built gas supply systems, these cylinders are capable of providing continuous flow rates of up to 9.2 cu.m/h. if you require a greater vaporizing volume, we can provide an external vaporizer.
Place of Origin:
Jiang Su,China
Brand Name:
LAMOKO
Condition：
New
Model Number:
DPL450-175-2.3
Dimension(L*W*H)：
Φ505*1550mm
Capacity:
175L
Weight:
172KG
Warranty:
3 years
working pressure：
2.3Mpa
Material:
SUS304
Application Medium:
LOX, LAr, LN2, LCO2
Design：
Vertical
Static evaporation rate(%/d)：
≤2.1%/d
Key Selling Points:
Easy to Operate
Color:
Silver
Core Components：
Pressure vessel
                                                                                 Vertical 100L-232L technical parameters
Product number
DPL450-100
DPL450-175
DPL450-195
DPL450-210
DPL450-232
Nominal volume
100
175
195
210
232
Effective volume
90
158
176
189
209
Work pressure
2.3
1.37
2.3
1.37
2.3
1.37
2.3
1.6
First-level safety valve opening pressure/First-level safety valve opening pressure
2.41
1.6
2.41
1.6
2.41
1.6
2.41
1.72
Secondary (auxiliary) safety valve opening/bursting disc burst pressure
3.62
2.4
3.62
2.4
3.62
2.4
3.62
2.5
Evaporation rate (liquid nitrogen LN2)（%/d)
≤3.0
≤2.1
≤2.1
≤2.0
≤1.97
Empty bottle net weight/gross weight with frame
93/-
119/159
132/172
124/166
140/182
131/175
151/195
142
mostBig ChargePack quantity
LO2（KG)
103
178
178
200
200
215
215
238
LN2（KG)
73
128
128
142
142
153
153
169
LAr（KG)
127
222
222
247
247
266
266
294
LCO2（KG)
99
/
173
/
193
/
208
/
LNG（KG）
/
67
/
75
/
81
/
/
Dimensions
Φ505x1070
Φ505x1550
Φ505x1675
Φ505x1770
Φ505x1900
Zhangjiagang Blue Sky Cryogenic Technology Co., Ltd. is located in Zhangjiagang City, Jiangsu Province, a civilized and sanitary city. It is committed to a complete set of solutions for cryogenic equipment and its technical application. We have a professional development team and installation service team. Staff composition. The key members concurrently serve as the National Gas Cylinder Standardization Committee, the Cryogenic Subcommittee of the Cylinder Standardization Committee, the China Road Transport Association and other industry experts, and participate in the drafting of national standards for related products.

The company is mainly engaged in LNG/IG cryogenic storage tanks, LNG/IG cryogenic gas cylinders, LNG vehicle cylinders and other products; LNG/IG vaporizers, LNG/IG pressure regulating metering skids, IG gas mixers and other complete sets of gas supply devices; LNG/ IG engineering complete set of supply, installation, after-sales maintenance and other services.

We uphold the values of "honesty-based, trust-based", deep cultivating technology in the low temperature field, focusing on gas equipment applications, diligent in learning, and continuous improvement; in order to provide customers with thoughtful one-stop service, at the same time, the company and the industry chain Relevant well-known key enterprises have established long-term and stable deep strategic partnerships, exchange what is needed, work together, and jointly contribute to our "blue sky and green land".
1. Pressure in the container is low.
Recommended Activity:
1) Refer to the instruction manual and use according to the recommended maximumgas withdrawal rate and supercharging capacity
2) Open pressure building regulator or pressure building valve

2. The cylinder is filled but no pressure display
Recommended Activity:
1)Change the pressure gauge
2)change the rupture disk
3)Repair or replace the valve

3. The bottom of container covered with spiral frost
Recommended Activity: It is normal

4. The top of container covered with frost Recommended Activity:
1)Check the leakage of the liquid level gauge connection, replace the seal washer, re-install and do air tight test after the pressure is empty
2) Tighten joint and do air tight test
